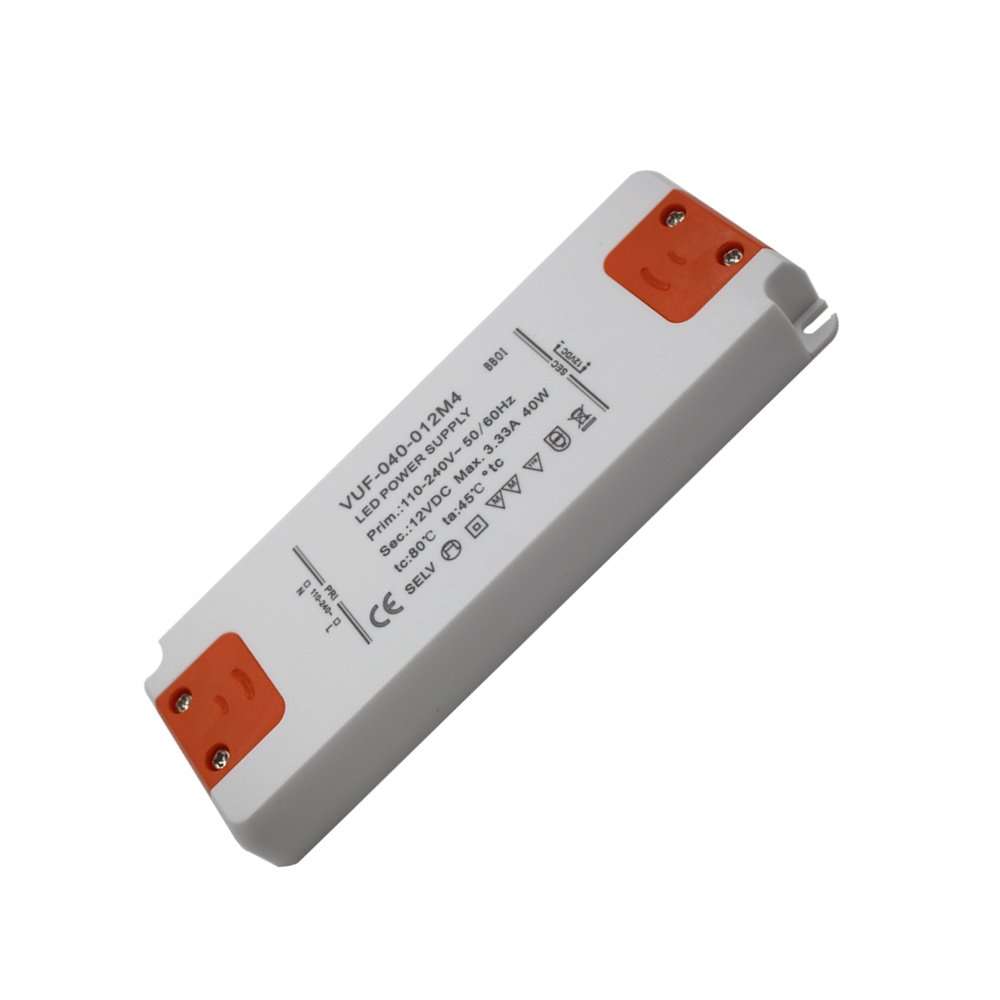

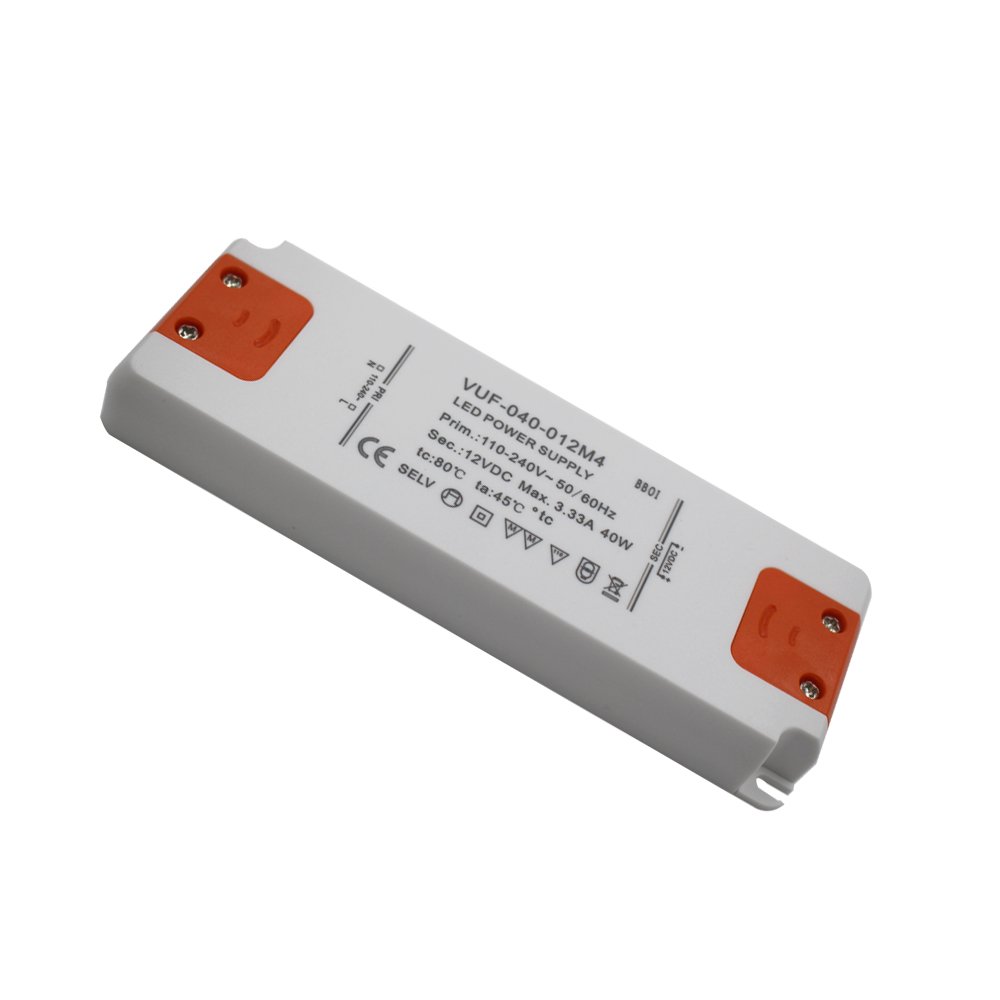

40W ultra slim plastic shell led power supply ac dc 12v 24v LED Driver for indoor lighting Smart Home Lighting
Indoor plastic LED driver IP20 constant voltage ultra thin 12v 3.3a 40w led power supply
Specifications:
| Model | VUF-040-012M4 | |
| Output | DC voltage | 12V |
| Rated current | 3.33A | |
| Current range | 0~3.33A | |
| rated power | 40W | |
| Ripple & Noise (peak to peak) | <360mV | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 100~265VAC |
| Current | 47~63Hz | |
| Power factor | 0.5 (0.95) | |
| effectiveness(Typ.) | 85% | |
| Alternating current(Typ.) | 0.22A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 3.8A | |
| environment | Operating temperature | -10~+40℃ (Please refer to the load reduction curve) |
| Protection class | IP20 Suitable for indoor use | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP20 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; EN61547 | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 ” twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
